Nom de la série : Night Vision Accessories
Nom : PVS-14 Auto-Gating Night Vision Circuit Board
MHNV®️ PVS-14 Night Vision Monocular Device Circuit Board

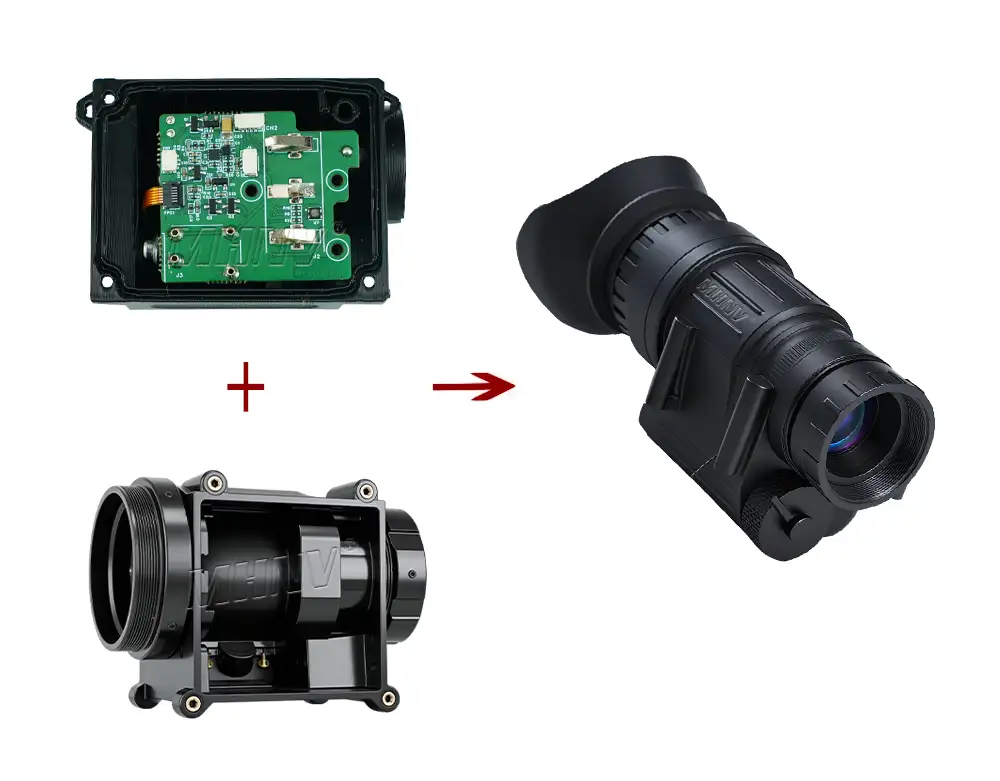

The circuit board is the "nerve center" of the PVS-14 night vision device, converting the energy from a single AA battery (1.5V) into the thousands of volts of high voltage required for the intensifier tube, and providing precise control and protection.
Five core components:
1. High Voltage Power Supply Module (HVPS)
2. Automatic Brightness Control (ABC) / Automatic Gating Circuit
3. Manual Gain Control Circuit (Optional)
4. Infrared (IR) Illumination Control Circuit
5. Power Management and Interface System

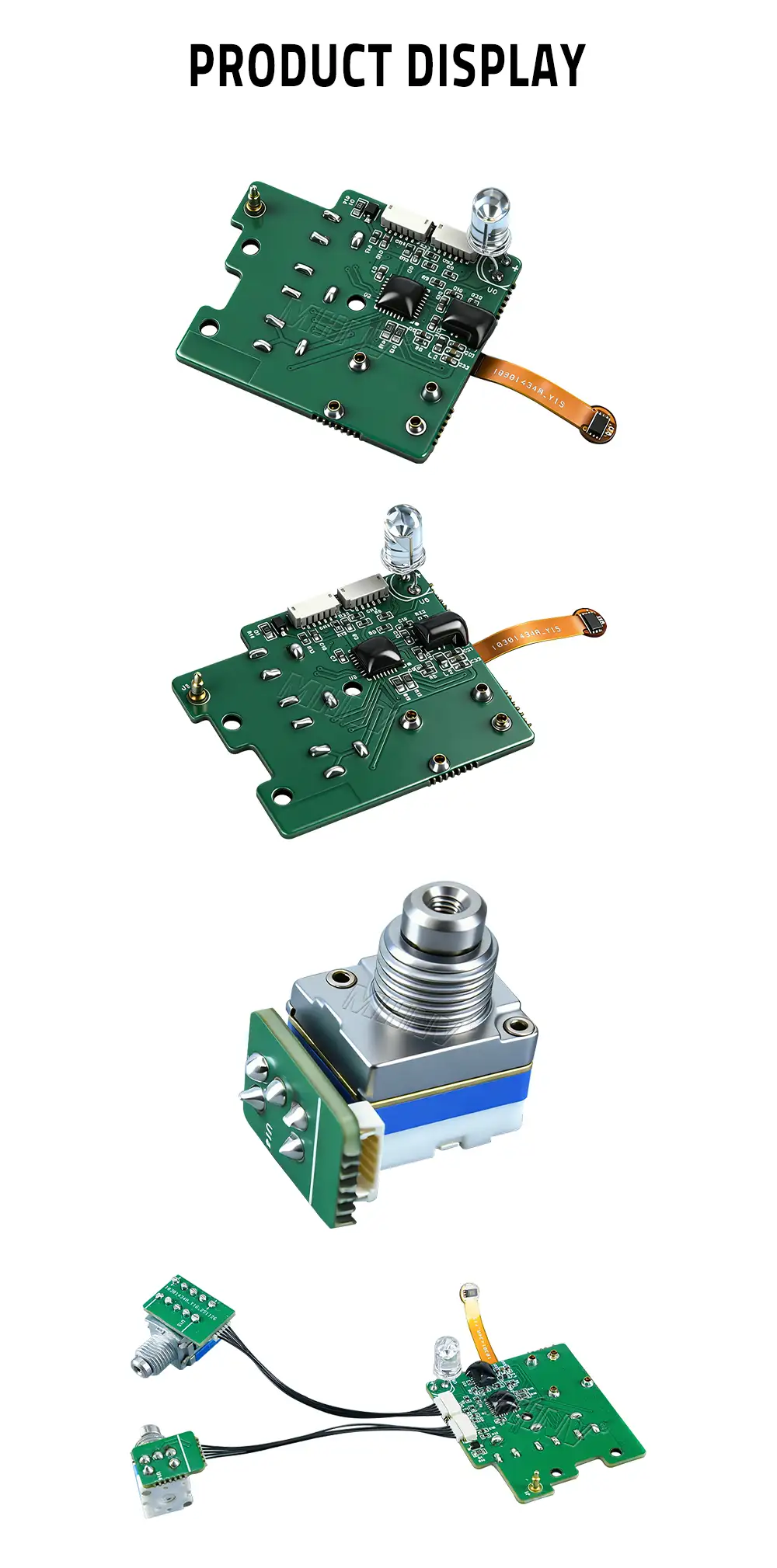

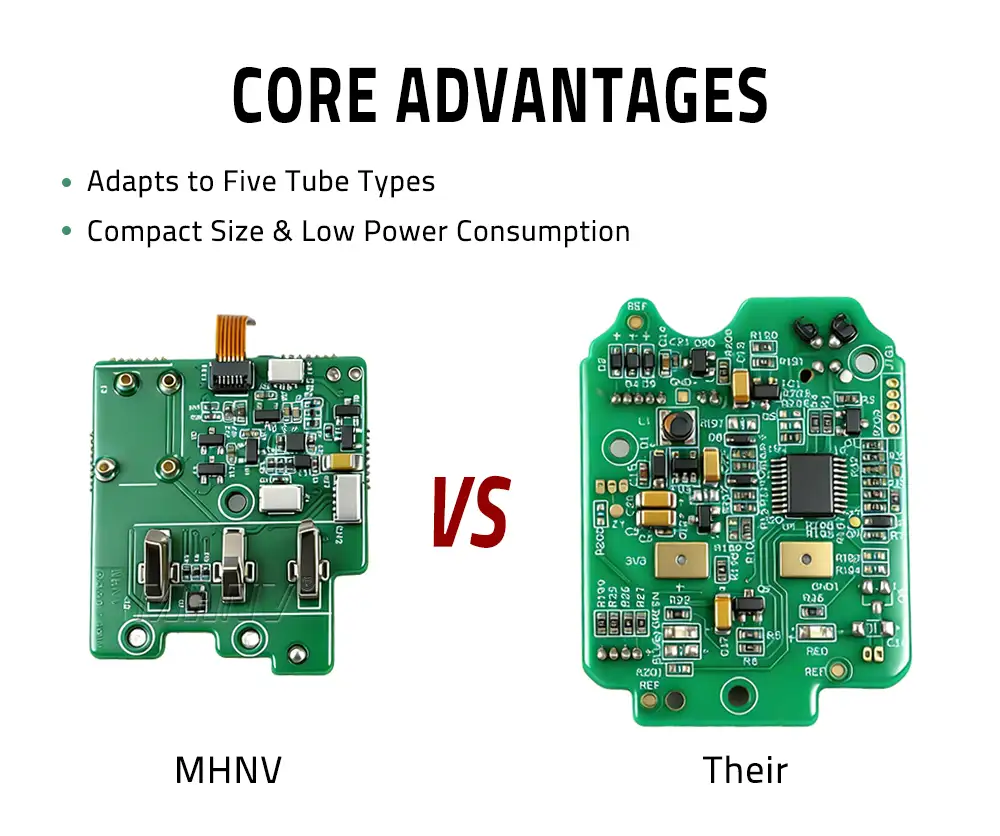

Core Advantages:
1.Adapts to Five Tube Types
PVS-14 Universal Circuit Board Compatible Supports MX11769 (3-Wire),MX10160 (2-Wire), 3-Contact/2-Contact)/ITT Pigtail tube types.
2.Compact Size & Low Power Consumption
* Board dimensions: Only 37.2mm*32.1mm , smaller than traditional designs.
* Operating power consumption: <48mW (typical working state), lower than similar products.
Paramètres

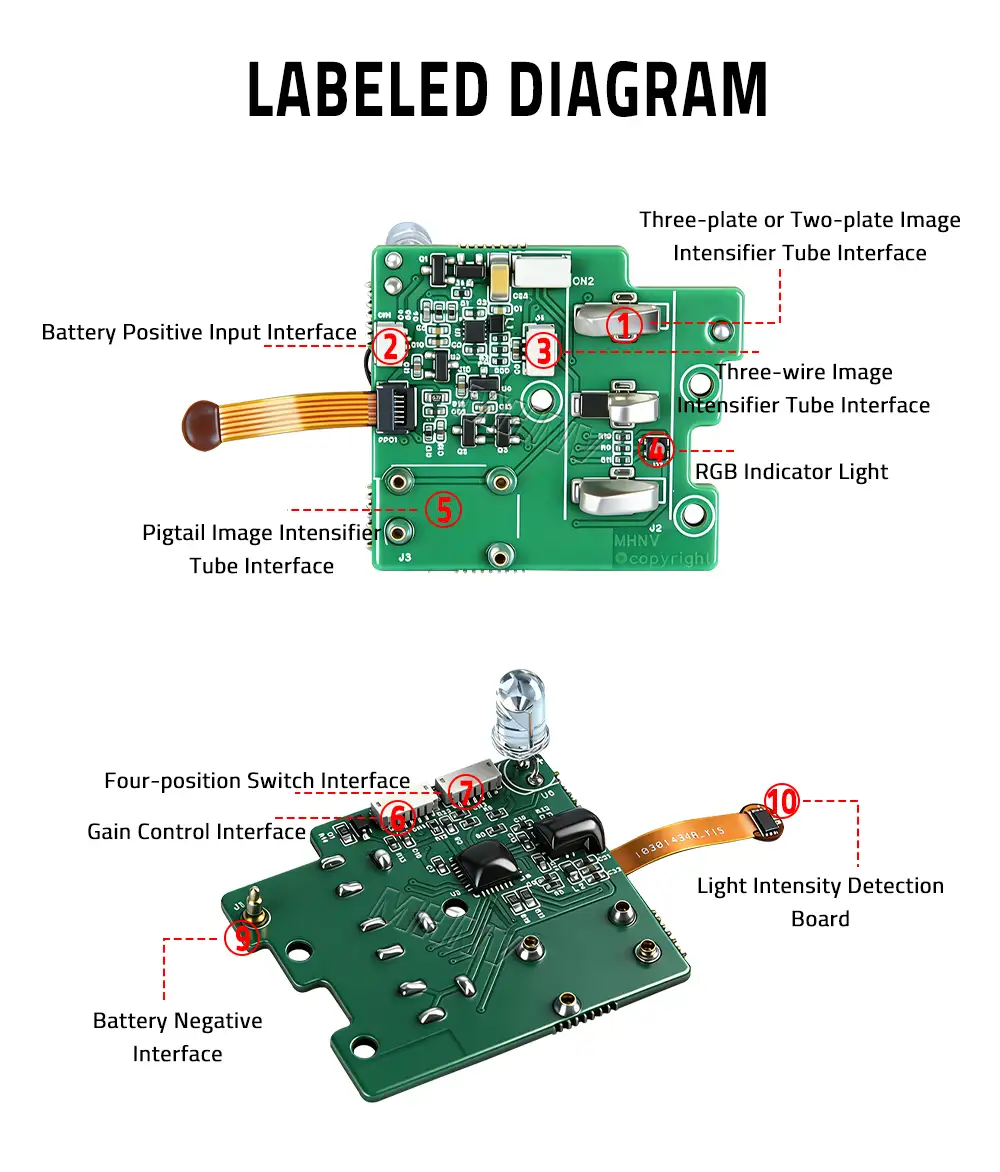

| Hardware Module | |
| Three-plate or Two-plate Image Intensifier Tube Interface | |
| Battery Positive Input Interface | |
| Three-wire Image Intensifier Tube Interface | |
| RGB Indicator Light | |
| Pigtail Image Intensifier Tube Interface | |
| Gain Control Interface | |
| Four-position Switch Interface | |
| IR Illuminator | |
| Infrared (IR) Fill Light | |
| Battery Negative Interface | |
| Light Intensity Detection Board | |
| Interface and Key Definitions | |
| Light Sensor Window | Detects ambient light intensity |
| IR Illuminator | Wavelength 850nm |
| Manual gain buttons | Stepless rotation and pressing function |
| Four-position Switch | OFF, ON, IR, AUTO |
| Key Technical Specifications | Specification Requirements |

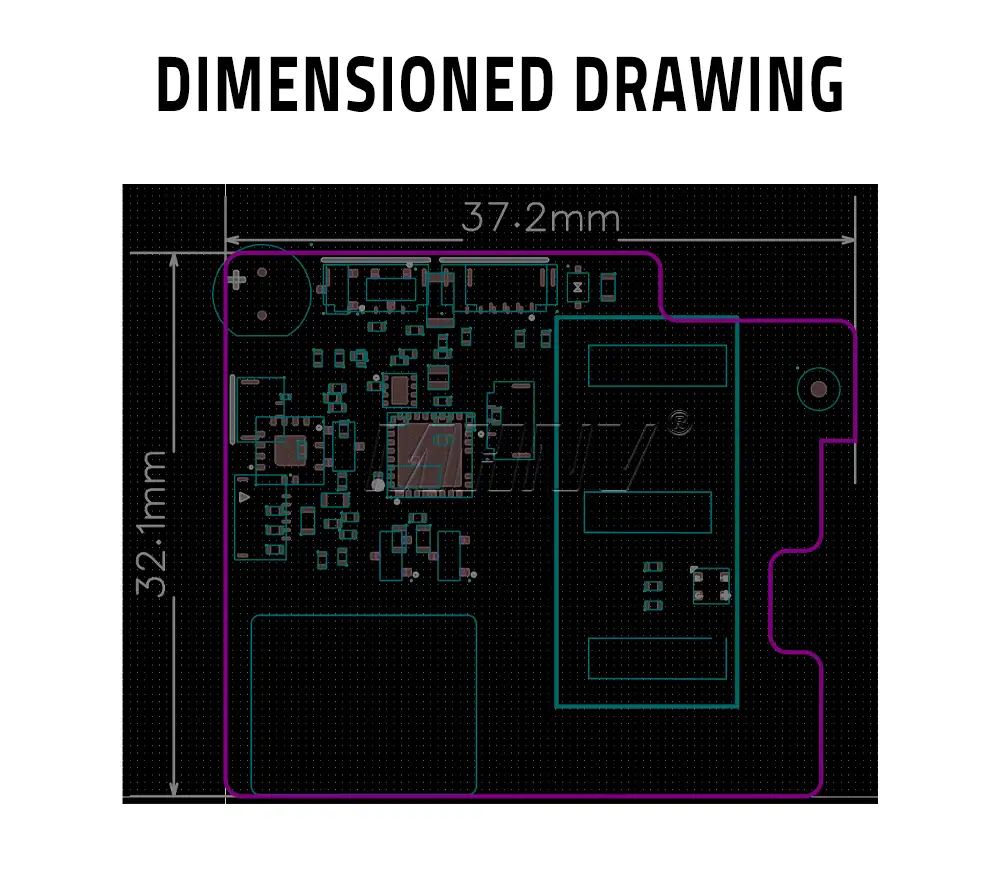

| Dimensions | 37.2mm × 32.1mm |
| Shutdown Power Consumption | <10μA |
| Voltage Ripple | ±50mV |
| Operating Temperature Range | -40℃ ~ +60℃ |
| Storage Temperature Range | -40℃ ~ +70℃ |
| MTBF | 5,000 h |
| Service Life | ≥ 3 years |
Étiquette chaude :
PVS-14 Universal Circuit Board,PVS-14 Night Vision Circuit Board,PVS-14 Multi-Tube Compatible Power Supply,Circuit Board for MX11769/MX10160,PCB,PCBA,Night Vision Printed Circuit Board Assembly
