Nom de la série : Thermal Module
Nom : MH-ST-M640

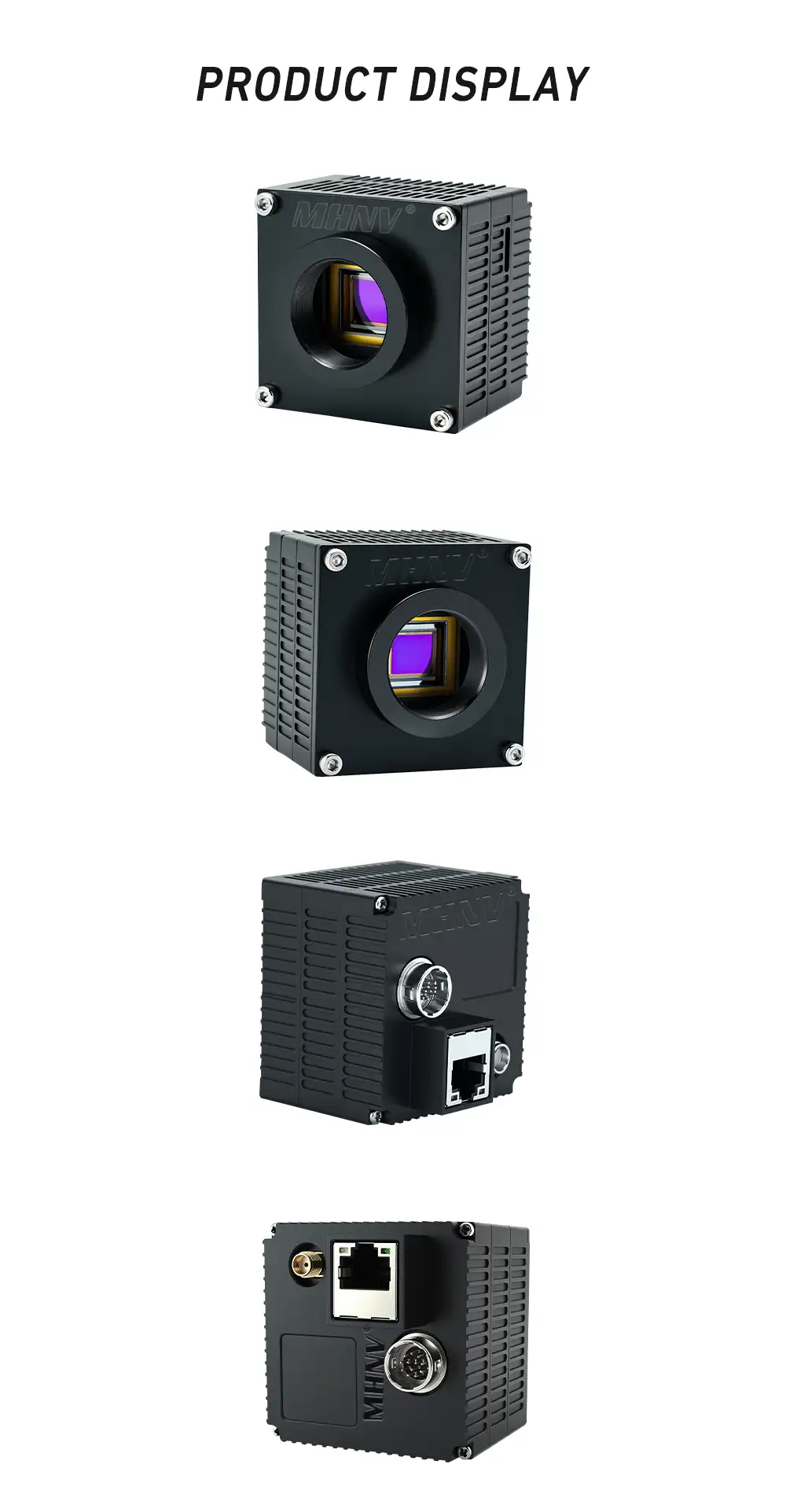

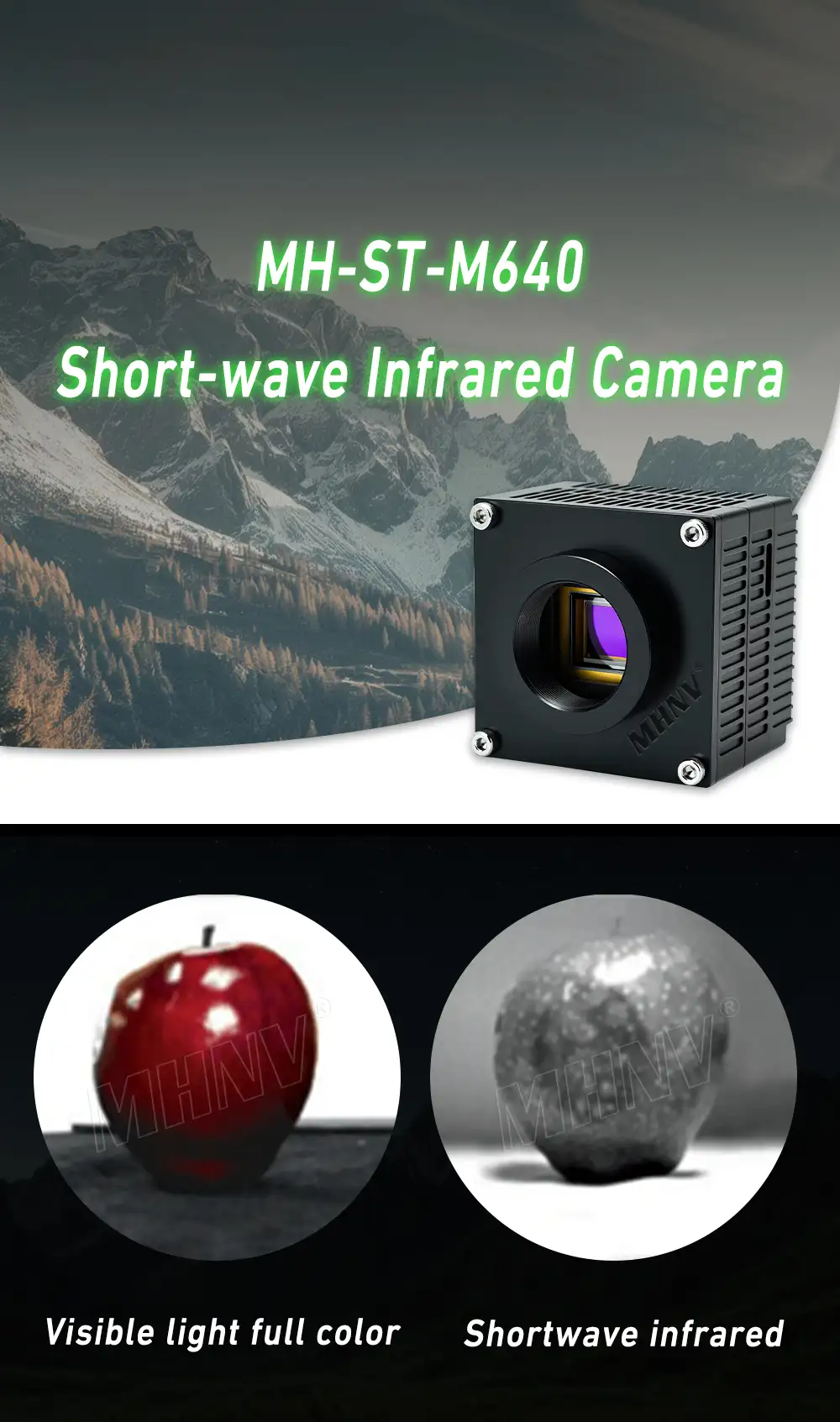

MH-Short-Wave infrared(SWIR) camera adopts InGaAs focal plane TEC cooling detector, resolution 640x512, pixel pitch 15μm, and 0.9μm~1.7μm response wave. It is equipped with two-stage TEC deep cooling function,effectively minimizing readout noise. The whole machine with the feature of integration and modularization.High sensitivity, small size, light weight, low power consumption, and rich interfaces, it is easy for customers to integrate and use.





Paramètres
| Thermal color palettes | 8 color palettes |
| Place of Origin | Shaanxi, China |
| Model Number | SWIR |
| Resolution/Pixel Pitch | 640x512,15μm |
| Spectral Range | Material |
| InGaAs | Cooler Type |
| Frame Rate | 25Hz |
| External Trigger | RS422 |
| Sync | Internal/Externalsync |
| Integration Time | Manually |

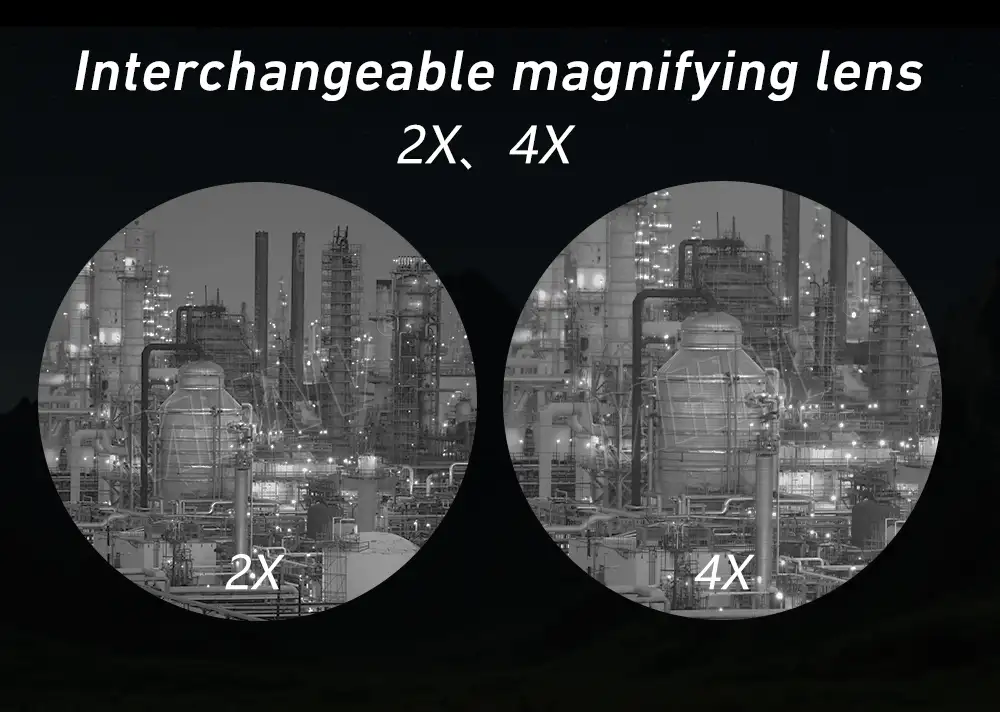

| E-Zoom | x2/x4 |
| Stable Power Consumption | ≤5W@25℃ |
| Selling Units | Single item |
| Single package size | 25X20X25 cm |
| Single gross weight | 1.000 KG |
Étiquette chaude :
Thermal Imager,Cooled Short-wave,Infrared,High Resolution,High SNR,Two-stage , ,
