Nom de la série : Night Vision Binoculars

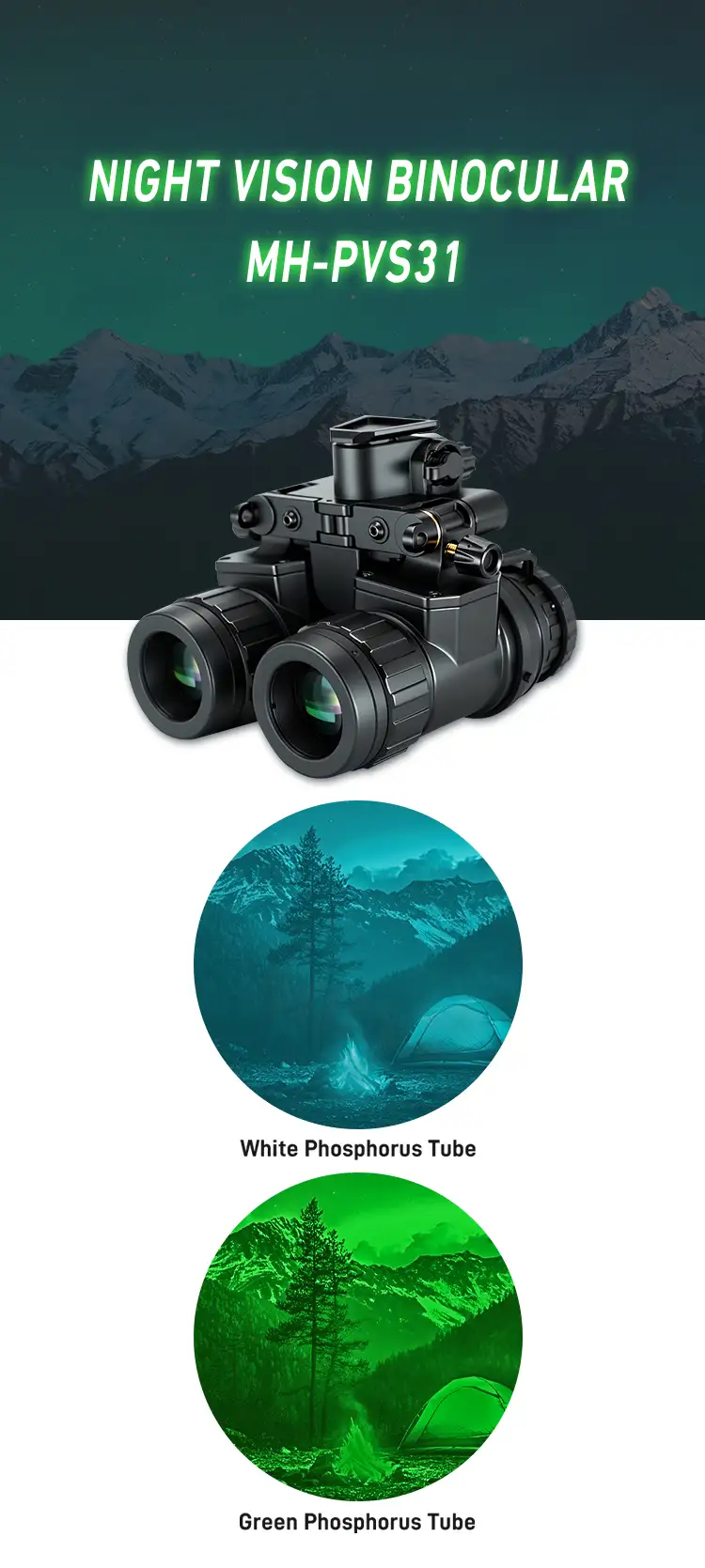

Nom : MH-PVS31
MH-PVS31 has an ergonomic low-profile design and offers superior situational awareness compared to a single tube goggles. Working directly with input from Special Forces operators, the binocular type night vision goggle was designed to increase system resolution, significantly reduce head-borne weight and improve system center of gravity, provide additional operational utility, and improve overall operator situational awareness as compared to currently fielded dual-tube night vision binoculars .
Main Features

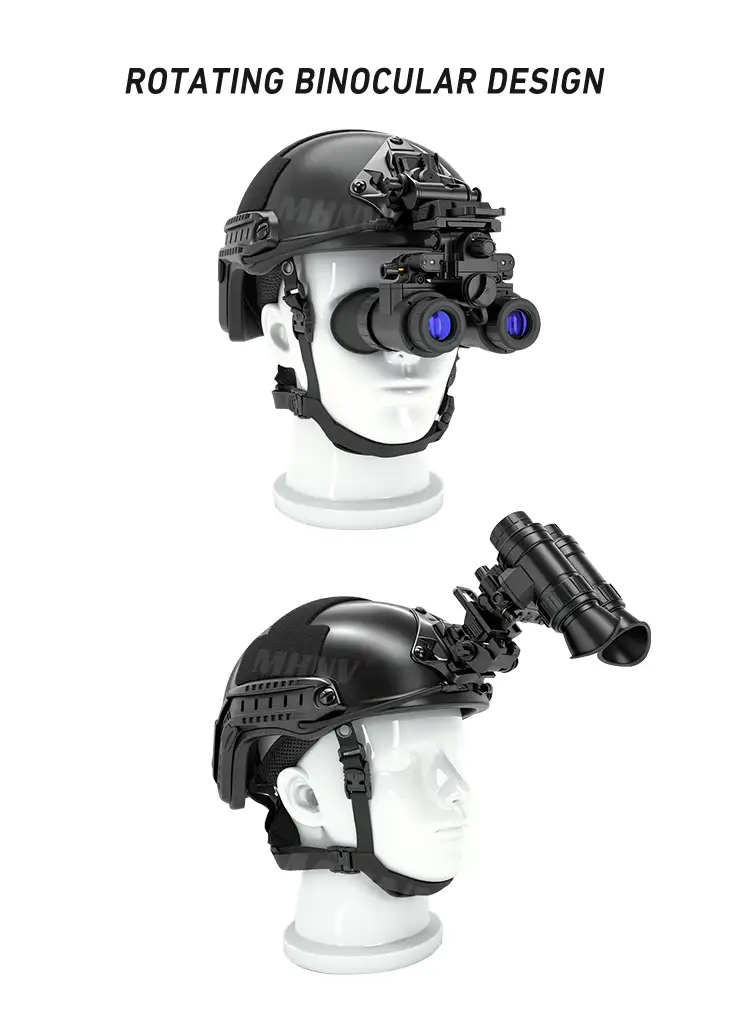

1.Multipurpose: handheld, helmet support, head support;

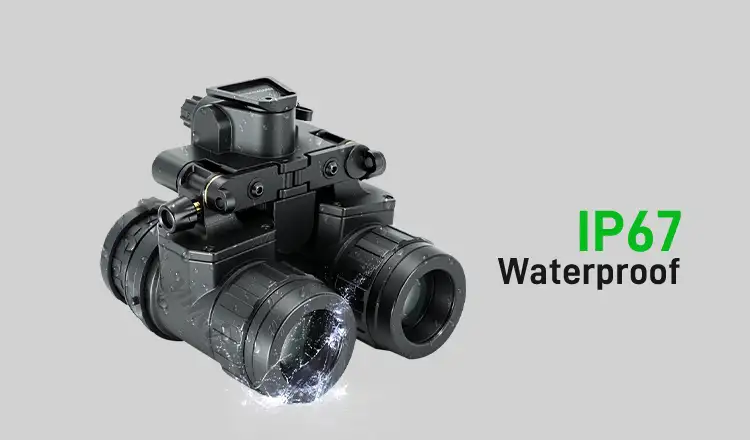

2.Protection level reaches IP65 /IP67 (Optional);
3.Small in size, and light weight;






Paramètres
| Rollover detection | Automatically detect and power off when turning up |
| magnification | 1X |
| Battery type | Lithium battery (cr123x1) / cr23x4 external battery box |
| Power supply | 2.6-4.2V |
| control mode | ON/IR/AUTO |
| Over power consumption | <0.1W |
| Battery capacity | 800-3200maH |
| Battery life | 40-100H |
| Resolution | >60lp/mm |
| Dimensions | 112x105x86mm |
| FOV | 40°±2° (50°±2° ) |
| Parallelism of optical axis | <0.1 ° |
| Lens system | F1.2 25mm |
| MTF | 120LP/mm |
| Optical distortion | 3% Max |
| Operating temperature range | -40℃~~~+55℃ |
| Storage Temperature | -50℃~+75℃ |
| IP Rating | IP65/IP67 (optional) |
| IR | 850 nm, 20 mW |
Étiquette chaude :
IITGen2/2+/3,High Power,Binocular Night Vision Device,Night Field Observations,FOM1400/1600,MX10769 , , , ,
