Series Name : Night Vision Goggles
Name : MH-GPNVG

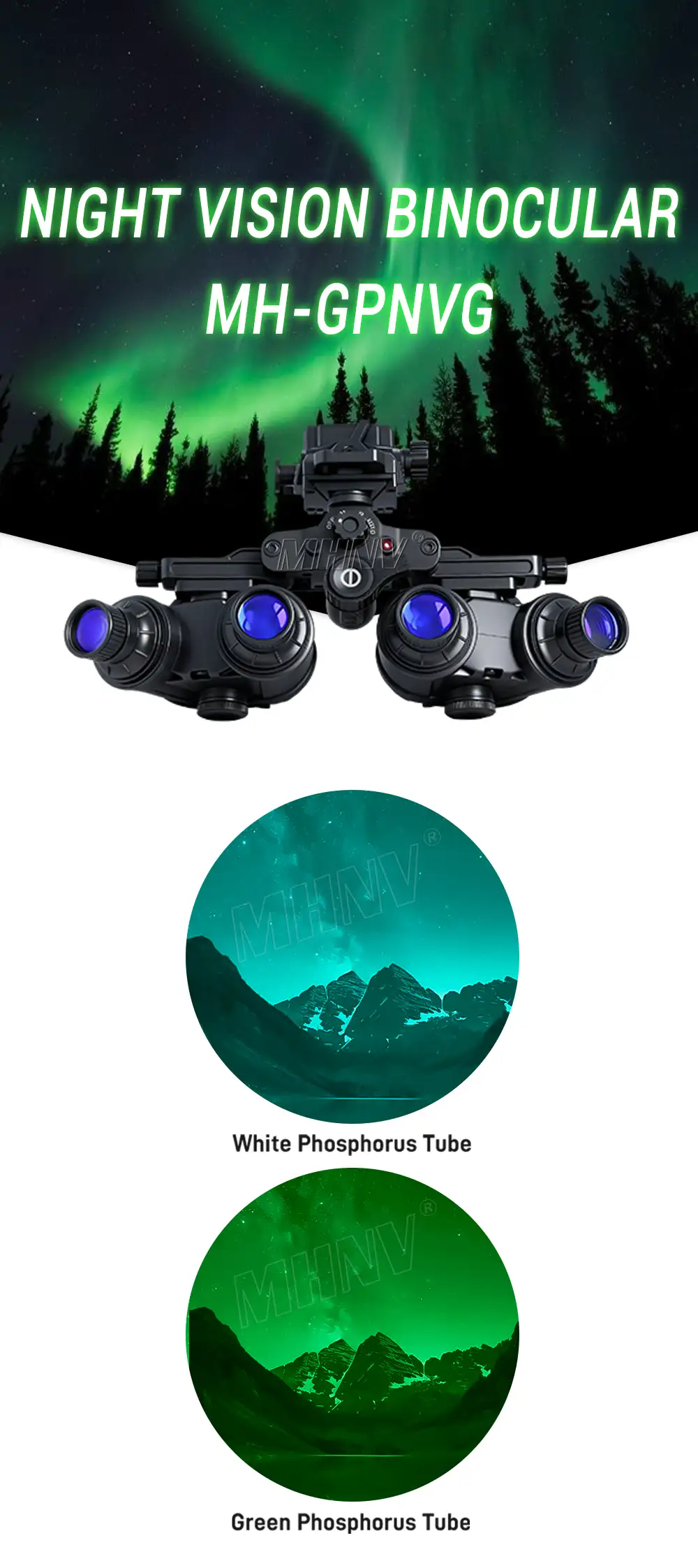

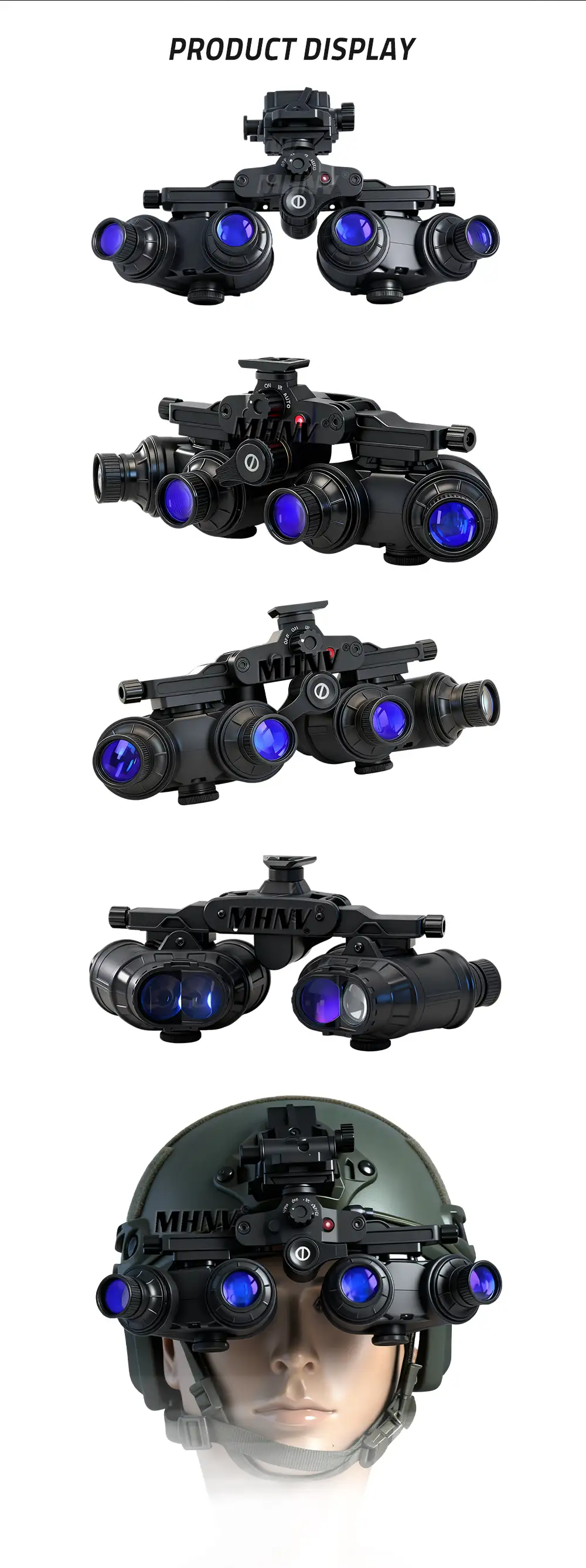

Ground Panoramic Night Vision Goggles (GPNVG) are high-performance night vision devices for military and law enforcement use. With a head-mounted design and four-lens layout, they offer an ultra-wide field of view of around 120°, far exceeding traditional night vision goggles. Featuring high resolution, long battery life, automatic brightness adjustment and image stabilization, they can be separated into monocular night vision glasses. Enhancing nighttime situational awareness and aiding missions in complex environments, they are costly and mainly used in professional fields.
Main Features
1. Field of view up to 120°;
2. IPD for both systems adjustable on helmet mount;
3. Four independent image intensifier tubes and four objective lenses;





Parameters
| Battery Type | Lithium battery (CR123x1) / CR123x4 external battery pack |
| Battery Capacity | 800-3200maH |
| Battery Life | 30-80H |
| Maginification | 1x |
| FOV | Horizontal 120±2 ° Vertical 50±2 ° |
| Photocathode Type | 18 mm S-25 |
| Resolution | 57-64 lp/mm |
| Lens System | 22.5 mm, F/1.18 |
| MTF | 120 lp/mm |
| Focus Range | 250 mm to infinity |
| Eye Relief | 30 mm |
| Pupil Diameter | 8 mm |
| Visibility Range | -1 (+0.5~-2.5) |
| IPD Adjust Range | 50-85 mm |
| IR | 850 nm 20mW |
| Working Temperature | -40℃ ~ +55℃ |
| Humidity Range | 5%-95% |

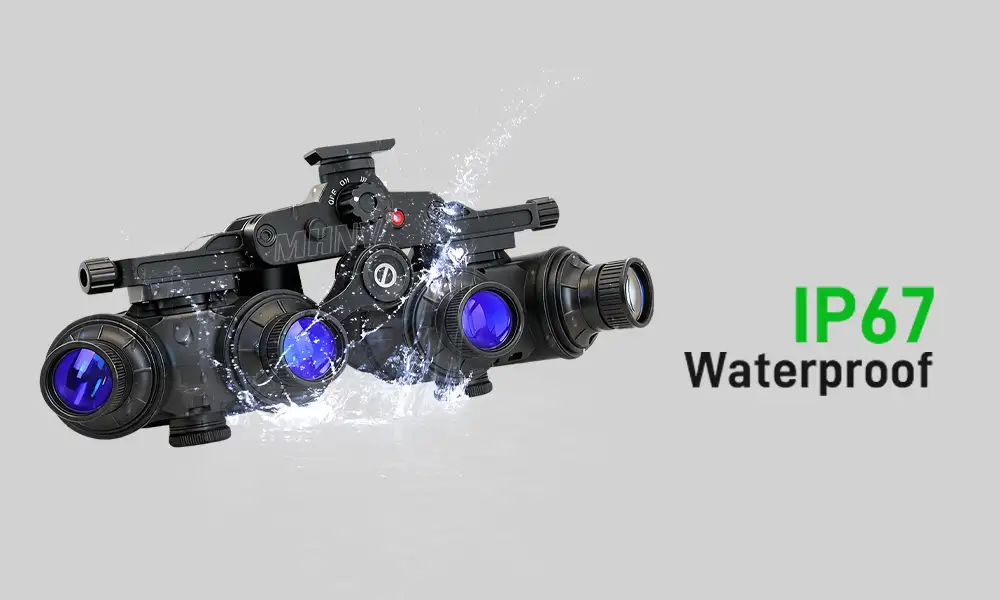

| Protection Level | IP65 |
| Dimensions | 155 mm* 136 mm* 83 mm |
| Weight | 880g (Without battery) |
