Series Name : Night Vision & Thermal Fusion
Name : MH-F-PVS14
The MH-F-PVS14 is a versatile night vision monocular widely used by numerous military and government agencies worldwide. It adopts an advanced U.S.-made 3rd generation white phosphor autogated image intensifier tube, featuring variable gain control and automatic shutdown under strong light. It can be handheld, head-mounted, or mounted on weapons, adapting to various complex environments.
Parameters
| Low light level | |
| Resolution | 60-72Ip/mm |
| SNR | 20-25 |
| FOM | 1300-1800 |
| Focal length | 26 mm |
| Focus range | 250 mm |
| FOV | 40° |
| Brightness adjustment | Support |
| Thermal Imaging | |
| Thermal sensor | 640*512px @12um |
| Focal length | 18mm |
| FOV | 24°x18° |
| Brightness adjustment | Support |
| Contrast adjustment | Support |
| Fusion System | |
| Storage( Picture & video recording) | 32 G |
| Magnification | 1.0°+5% |
| Exit pupil diameter | 7mm |
| Eye relief | 20mm |
| Diopter | -5,+4 |
| Weight (exclude battery) | ≤350g |
| Dimension | 124x56x88 |
| Power supply | Manual |
| Focus | 940nm |

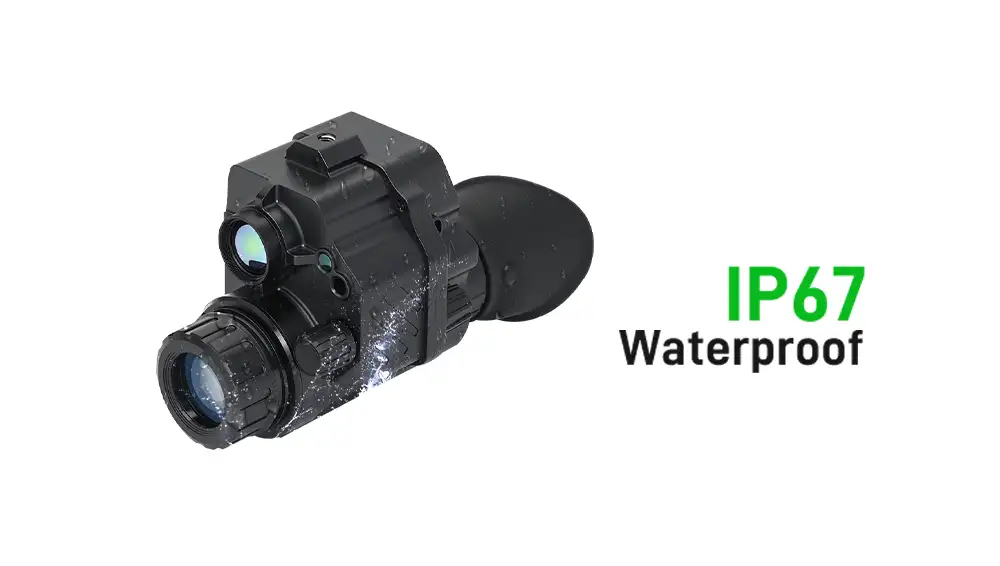

| IP rating | IP 67 |
| Operation temp. | -40℃~+50℃ |
| Fusion Duration | ≥8 hrs |
| Low-light mode duration | ≥60 hrs |
| Polarity | White/Black/Red hot;Outline/Highlight/Thermal |
| E-Z00m | Support |
| Bearing indication | Support |
| Pitch indication | Support |
| Highlight protection function | Support |
