اسم السلسلة : Thermal Binoculars
الاسم : MH-TB-R3
The MH-TB-R3 sniper training system uses thermal and visible light imaging for smart observation. It gathers real-time weather data, calculates ballistics, and assists with shooting. It also serves as a reconnaissance tool for day and night battlefield observation, identifying people, vehicles, and terrain.
Main Features
1.All-weather observation and reconnaissance;
2.Long-distance eye-safe laser ranging;
3.Function: Thermal visioin 640*480px /640*512px / Visible vision / GPS/Digital compss/ LRF 6km / Take picture/ Record video/ Real time video out put / Storage data 32G;





المعلمات
| Main parameters performance | |
| Infrared thermal imaging | Resolution:640*512px @12μm |
| Field of view:8.70°*7.00° | |
| Visible light | Resolution:1920*1080px 1/2.8 inches |
| Field of view:Continuous zoom 4.7°*3.7°~45°*36° | |
| Laser Ranging | Laser band:1535nm |
| Measuring range:30m-3Km (vehicle) | |
| Positioning type | Beidou multi-band |
| Electronic compass | Azimuth measurement accuracy:0.5° (RMS) |
| Pitch angle accuracy:0.3° (RMS) | |
| Ballistic calculation | Ballistic storage quantity:10 groups |
| Windage accuracy:0.5Mil | |
| Shooting angle accuracy:0.5Mil | |
| Weather sensor | Temperature range:-40℃~+60℃ |
| Wind speed range:-25m/s~+25m/s | |
| Continuous working time | ≥5 hours External interface |
| Multi-type ballistic calculation | Measure meteorological parameters such as temperature, humidity, air pressure, etc. |
| Contains 267 ballistic parameters (supports customization) | |
| Correctable for windage | |
| Light weight | Small size:210mm*178mm*80mm |
| Light weight:1.75kg (including battery) | |
| Fast and stable | Operating temperature range -40℃~+60℃ |

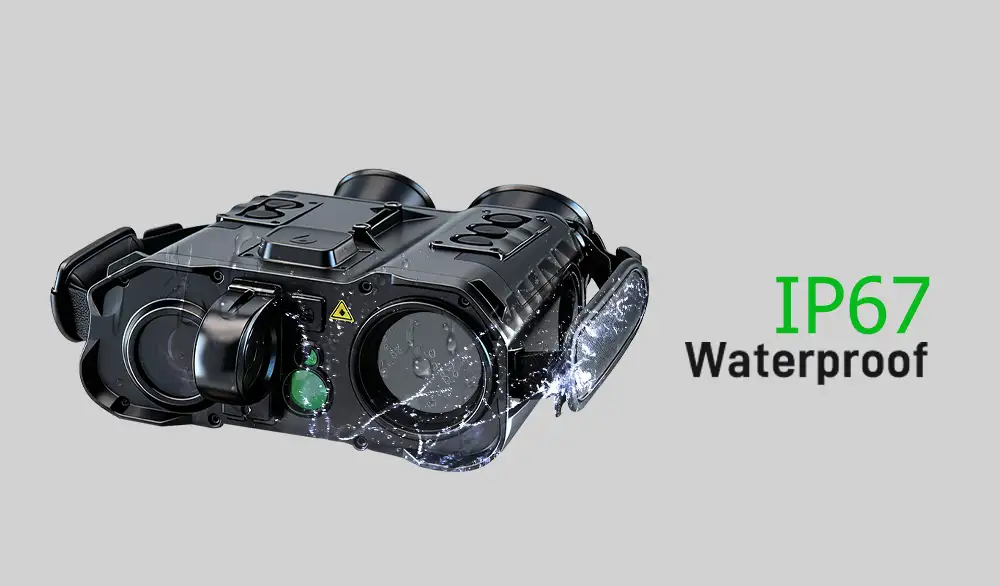

| IP67 protection | |
